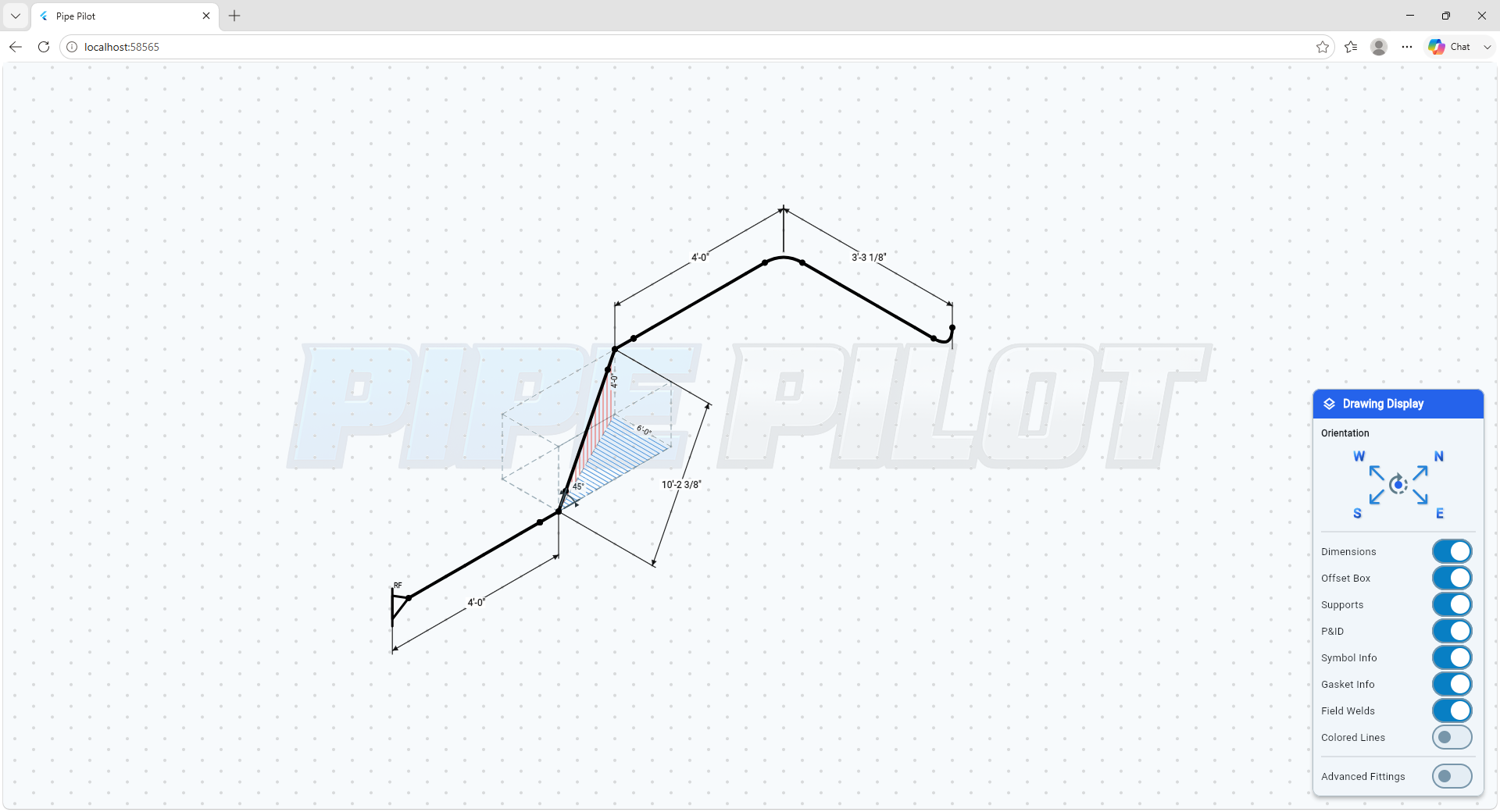

Detailed piping layout
A focused construction test showing dimensioned pipe run, angled routing and visual offset geometry while retaining the same clean isometric workspace and display controls.
Working Development Preview
Pipe Pilot taking shape.
These captures show the current drawing workspace handling practical piping layouts, measured runs, fittings, dimensions and angled-routing geometry. The interface is still under active development and will continue to change.
Inside the Build
Current drawing-workspace progress.
The preview focuses on the field-first drawing system: routing pipe, placing fittings, documenting measurements and making complex geometry readable without a traditional desktop CAD workflow.
Isometric routing
Measurement callouts
Fitting and valve placement
Rolled and angled offsets
Drawing-display controls
Angled-routing geometry

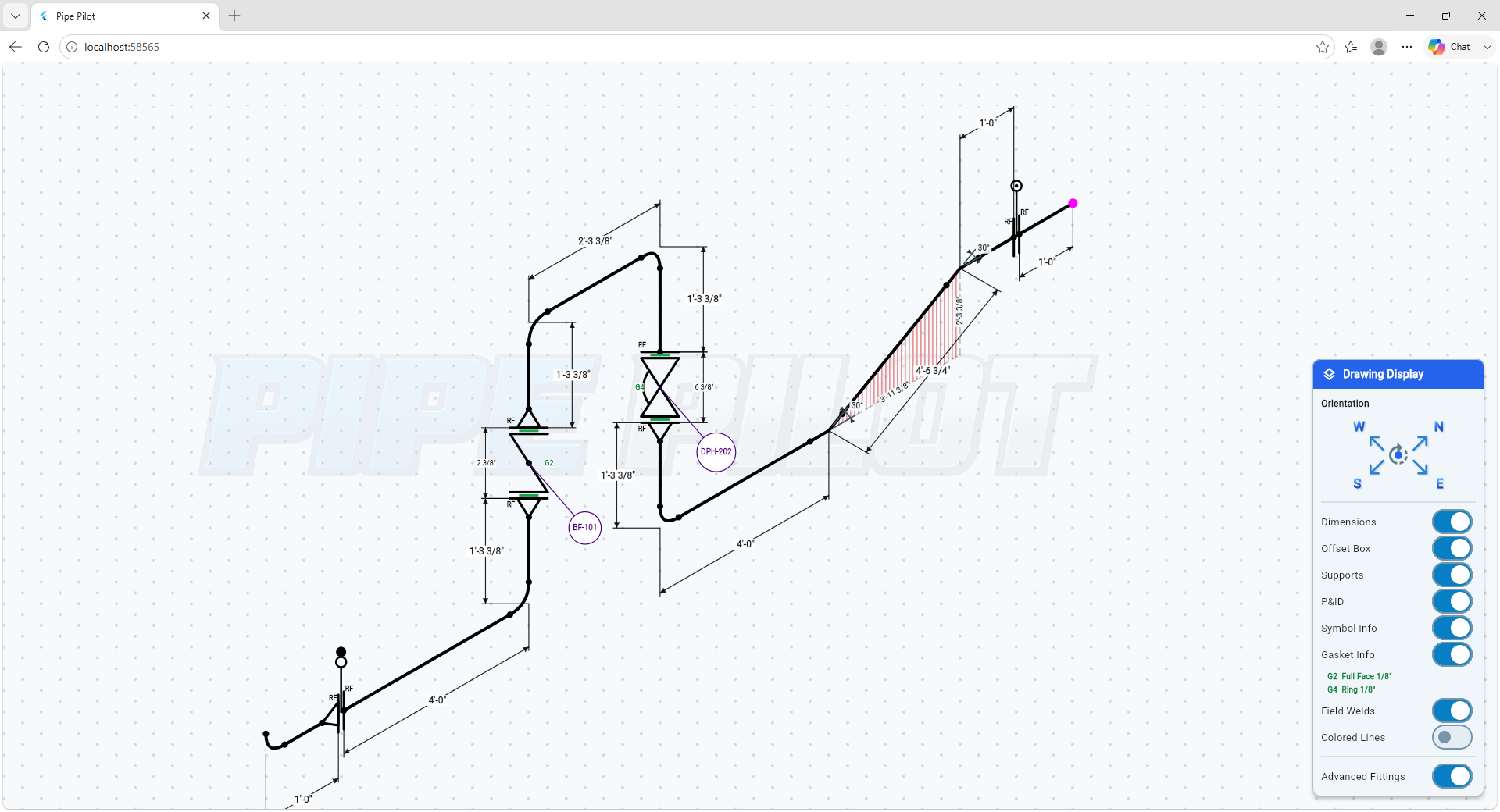

A larger working isometric combining connected runs, flanges, valve assemblies, weld and gasket information, dimensions, P&ID callouts and configurable drawing-display layers.
Field Input Matters
Help shape the working version.
Pipe Pilot is looking for practical feedback from pipefitters, plumbers, fabricators, supervisors and other piping professionals as the drawing workflow develops.
